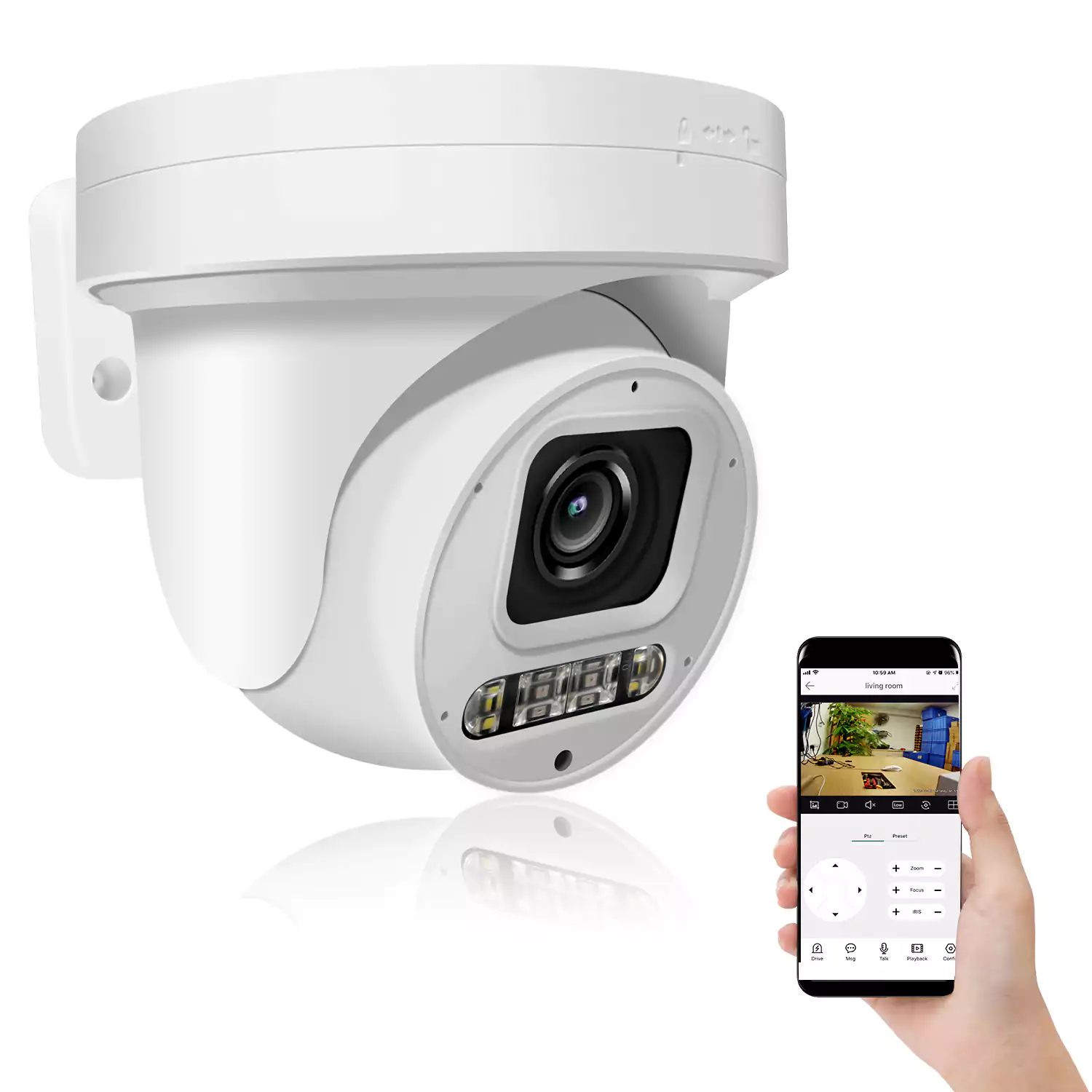

• 360-degree monitoring without dead angle, 4x hybrid optical zoom binocular lens, can see wide at close range, and see clearly at distance, The Dome rotates in both directions
• Card storage / two-way intercom / mobile phone remote / sound and light alarm / white light infrared double fill light It adopts the structure of rotary snap and quick installation,and supports the quick installation of top and wall installation as
  standard
• Outdoor IP66 dustproof and waterproof
• Optional POE type, WIFI type, 4G type and other models
• The unique structure of the dual-motor built-in camera compartment has obtained a number of invention patents and utility model patents

Sensior:

• 1/3″ ProgressiveScan CMOS  2560×1440 (4MP)
• 1/2.8″ ProgressiveScan CMOS 2592×1944 (5MP)
• 1/2.6″ ProgressiveScan CMOS 3840×2160 (8MP 4K)

• Minimum illuminationcolor: 0.005Lux @ (F1.6，AGC ON；blaack /white：0.001Lux @ (F1.6，AGC ON；0 Lux with IR
• Focus length: f=2.8~12 mm
• Horizontal viewing angle: 115°(wide) ~ 26°(tele)
• optical zoom: 4x
• shutter: 1/25~1/30,000s
• Day and night switching mode: ICR (Auto/color/black)
• Focus: Auto/Manual ; AGC: Auto/Manual ; BLC: Auto/Manual
• White balance: Auto/Manual
• SNR: >52dB
• WDR: Support
• Mirror Image: Level, Tilt, Centre
• Noise Reduction: 3D

NETWORK PARAMETER

• Main chipSigmastar: SSC337
• Image Coding: H.264/H.265
• Multi-stream output: Support
• Frame Ratemain stream: 2560×1440 @20fps 2304×1296 @25fps 1080P 720P @ 30fps
• Video Coding: G.711/G.711A/AAC
• ONVIF procotol: Support
• Network protocol: TCP/IP、HTTP、DHCP、DNS、RTP、RTSP、NTP、UPnP

Smart parameters

• Humanoid detection: support
• Zone detection: support
• PTZ paramters
• led light distance: Infrared up to 50 meters, white light up to 30 meters
• Horizontal range: 280 ; vertical range: 0°~90°
• Manual speed: Horizontal: 0°/s – 15°/s,Vertical: 0°/s – 15°/s
• preset: 256
• cruise scannot: support
• pattern scannot: support
• Power-off memory: support
• park: preset

Basic configuration

• External Interface: 1-way network interface, power supply Ф5.5*2.1mm round port
• Installation method: ceiling mount/wall mount
• Power supply: DC12V±15%
• current and power consumption: ≤12W
• Working temperature and humidity: 30-60°, humidity less than 95%, no condensation
• Protection Level: IP66

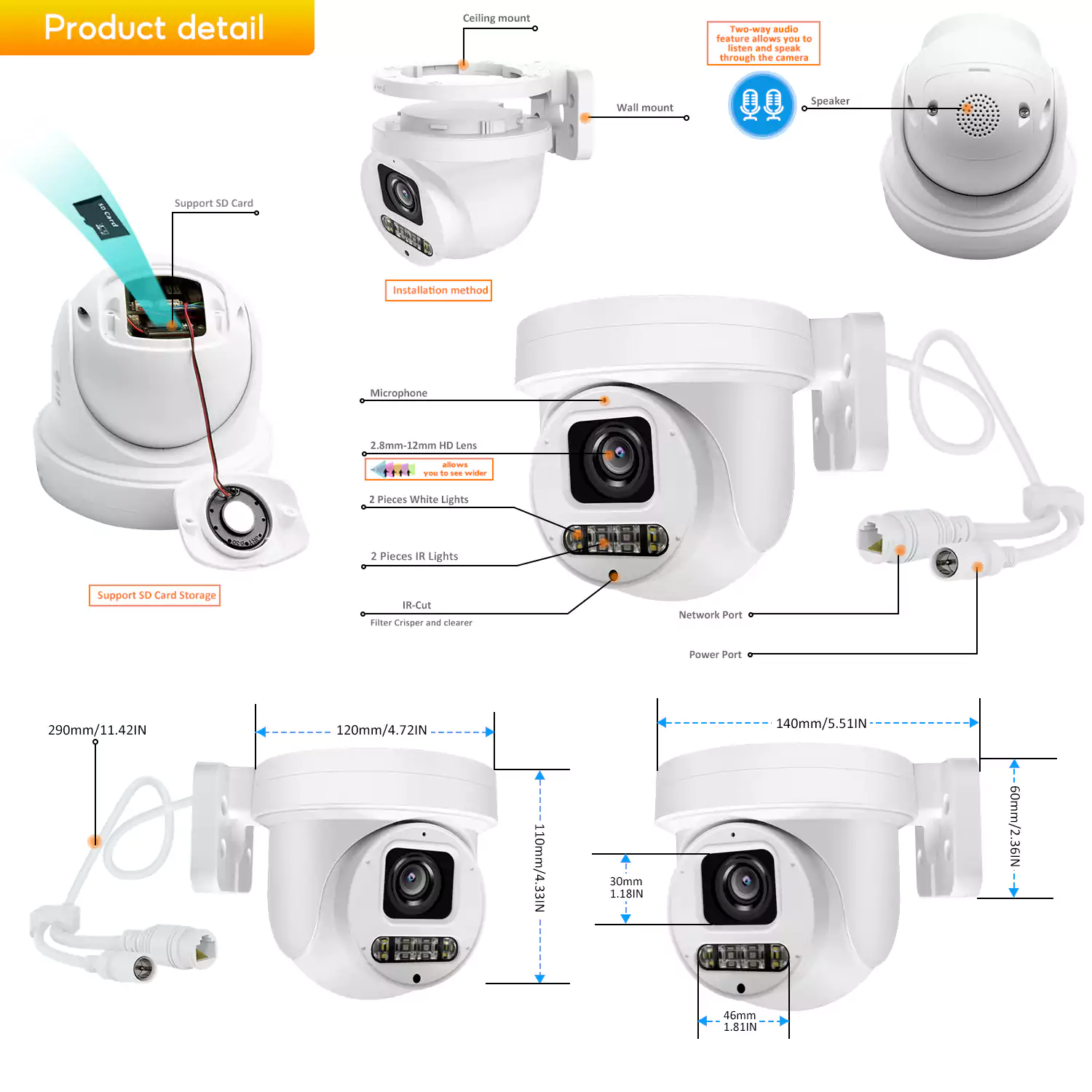

• Product Size: 120*110mm
• Package size: 150*150*170mm
• WeightEquipment weight: 480g Packed weight: 680g
